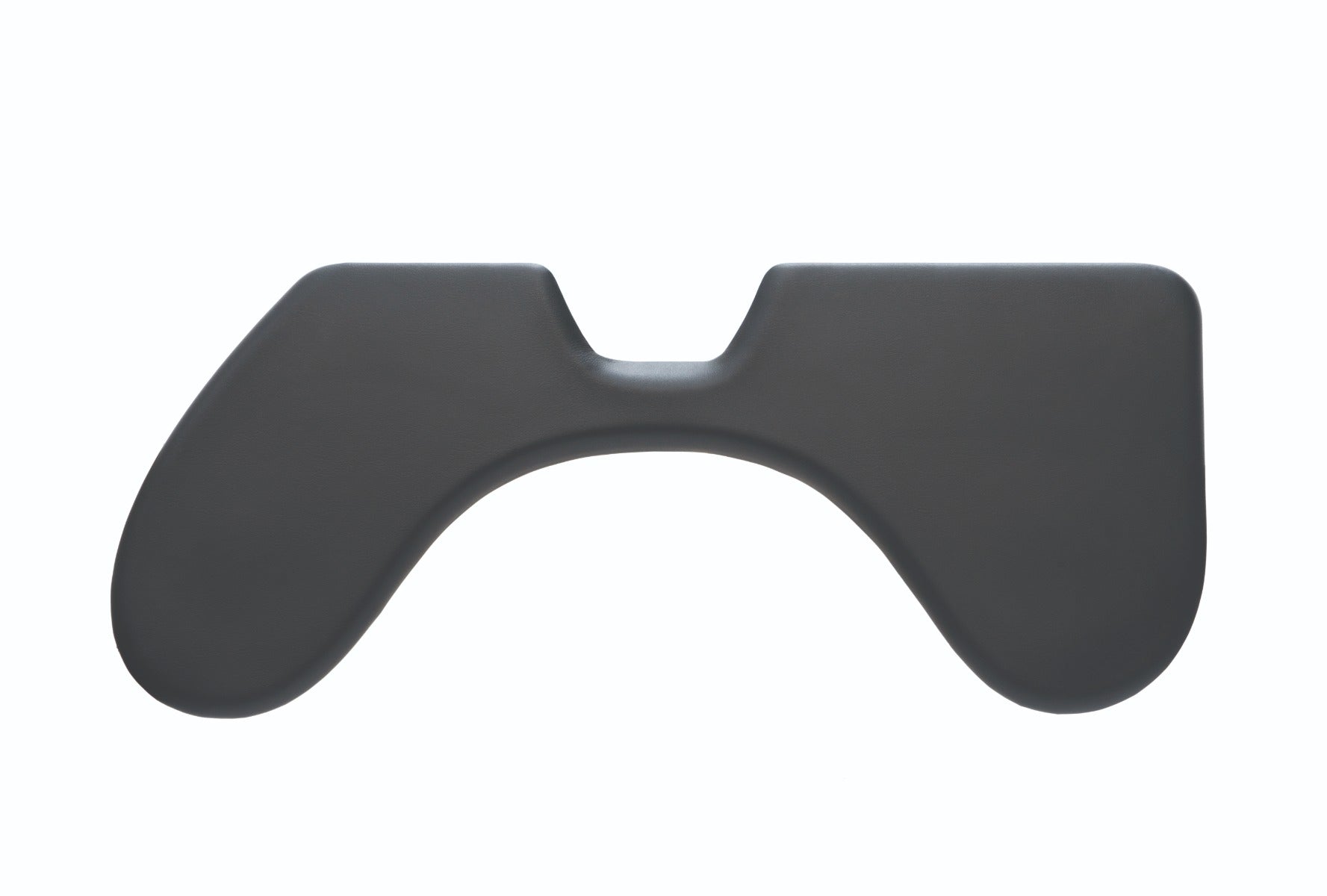

Contour Design RollerMouse Red Arm Support

Remove wrist rest
Make sure your RollerMouse Red is unplugged. Remove the short wrist rest if still attached, by using the key that came with your RollerMouse. Insert the key into
the slot next to arrow on bottom of RollerMouse Red. Turn in direction of arrow to release the short wrist rest at each end. Separate the units.

Attach brackets
Turn the ArmSupport Red upside down on a flat surface. Loosely attach the brackets to the ArmSupport Red by using the thumb screw in the hole in the small arch in the bracket.

Slide the underarmsupport onto desk
Slide your underarmsupport with brackets attached onto your desktop. Adjust placement as needed by sliding thumb screws up and down the metal track. Tighten slightly.

Slide the RollerMouse Red in
Align RollerMouse Red in the space between the underarmsupport and your keyboard. Tighten the thumb screws until the underarmsupport is fully secure. Attach keyboard risers and plug your RollerMouse Red in. Your underarmsupport is now ready to use

Technical specifications

• Width - 49 cm

• Depth (with RollerMouse Red) - 13,5 cm

• Width - 60 cm

• Depth - 25,5 cm

• Material on Armsupport Red - Disinfectable leatherette

• Warranty 2 years from date of purchase
